Microswitch endstops integrated into the operators enable quick and accurate adjustment of leaf opening and closing points.
The KRONO LONG kit includes the following components:
- 230 V right-hand operator,
- 230 V left-hand operator,
- control board enclosure,
- ZF1 control board,
- frequency card,
- DIR10 photocells,
- available remote control types: Top (2-channel) or Space (2-channel),
- endstops included – we recommend installing a stopper at the entrance.
Have questions?
+48 61 815 70 16
order@tulplast.pl

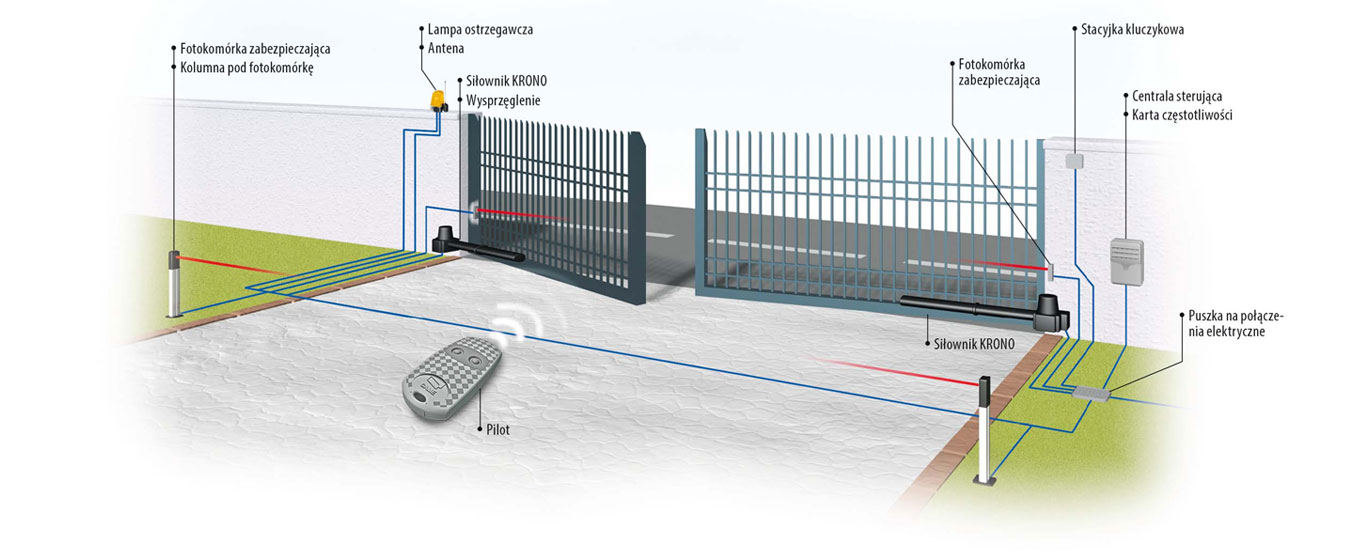

KRONO LONG is a complete kit for automatic control of a double-leaf gate with a leaf length of 3 m. The operators have endstops – we recommend installing a stopper at the entrance.
Advantages:
- Krono operators maintain very high reliability throughout their service life,
- vertical motor for silent operation,
- all enclosure parts in the Krono series are made from die-cast aluminium for longer service life,
- designed for heavy and wrought iron gates.
The KRONO STANDARD kit includes the following components:
- 230 V right-hand operator,
- 230 V left-hand operator,
- control board enclosure,
- ZF1 control board,
- frequency card,
- DIR10 photocells,
- available remote control types: Top (2-channel) or Space (2-channel).
Specification:
- maximum gate weight with 5-m leaf length: 400 kg,
- operators should be installed on metal posts with a size of 120x120 (min. size: 80x80 mm),
- maximum motor power: 130 W,
- 90° opening time: 44 s,
- duty cycle: 30%, residential,
- thrust: 400 N to 300 N,
- operating temperature: -20°C to +55°C.
Standard functions:
- microswitch endstops integrated into the operators enable quick and accurate adjustment of leaf opening and closing points,
- automatic closing,
- gate stopping with the remote control,
- safety even when the gate is not moving thanks to the special electronic circuit which ignores every command if an obstacle is detected by the safety devices.
Additional functions:
- partial opening of the gate to allow pedestrian passage if the control board is replaced with the ZA3 board,
- an additional photocell kit should be installed after replacing the control board with the ZA3 board.
