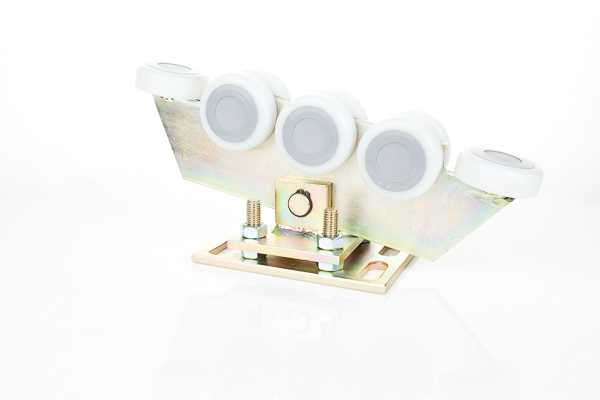

Swinging regulated carriage W-09/M

A carriage designed for self-supporting sliding gates. Used for various gate profiles and semi-closed C-sections. The gate carriages are galvanized and reinforced with yellow CR VI zinc, making them more durable and corrosion-resistant. The galvanic layer is approximately 8-12 um thick.

Advantages of the swinging carriage:

• Swinging carriages are used for standard gates with the correct counterweight ratio;
• The gate does not get stuck during operation because the moving elements of the carriage adapt to the gate profile;
• Swinging carriages adapt to the constant stresses of the gate caused by changing weather conditions.

Advantages of the additional adjustment plate:
The first lower assembling plate is screwed directly to the foundation base. The second base allows for adjustment of the correct height for the closed gate. This solution guarantees stable and strong attachment of the carriage to the foundation base.

The sliding carriages have metal rollers or polyamide rollers.

Advantages of the polyamide roller with bearings:

• They are manufactured using the injection method, which guarantees high resistance to abrasion and cracking.
• They reduce the noise level when moving the gate.
• Abrasion is lower than with steel rollers.
• The metal profile of the gate is not subject to abrasion.
• High resistance to changing weather conditions.
• The rollers are equipped with caps to protect the bearing against dirt.

Horizontally mounted guide rollers, at the front and back, of the carriage allow for perfect adjustment of the carriage to the gate guide. Additionally, horizontal rollers protect the vertical rollers from abrasion. The trolley with six horizontal rollers is recommended for gates with a clear gate length of 4,5÷7 m.

Carriage installation:
We install the carriages at the end of the gate in the so-called counterweight. It is assumed that the counterweight length is 1/3 of the clear gate length or in gates longer than 8 m approx. ½ of the clear gate length. The carriage's assembling plate has four elongated holes - so-called beans, where it is attached to the ground using an anchor or threaded rods. The maximum diameter of the bars is M16, and the recommended diameter is M14.

Gate load capacity: 600 kg.
Gate length in clear: 4,5–7 m.
Assembling plate: TYPE „A” - standard, TYPE "B" - optional

* The carriage is sold without a secure cover. It is recommended to install a cover made of ABS.
Possibility to purchase a secure cover in a set with the carriage.
Carriage compatible with carriage secure cover type: OZPW/B.
