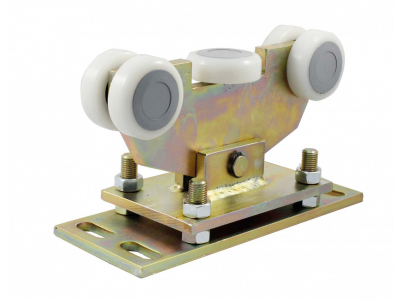

Carriage designed for self-supporting sliding gates. Used for various gate profiles and semi-closed channels. Gate carriages are galvanically zinc-plated and additionally reinforced with yellow CR VI zinc coating, making them more durable and corrosion-resistant.
Advantages of the swinging carriage
- Swinging trolleys are used for standard gates with the correct counterweight proportion.
- The gate does not jam during operation, as the moving elements of the carriage adapt to the gate profile.
- Swinging trolleys adjust to continuous gate stresses caused by changing weather conditions.

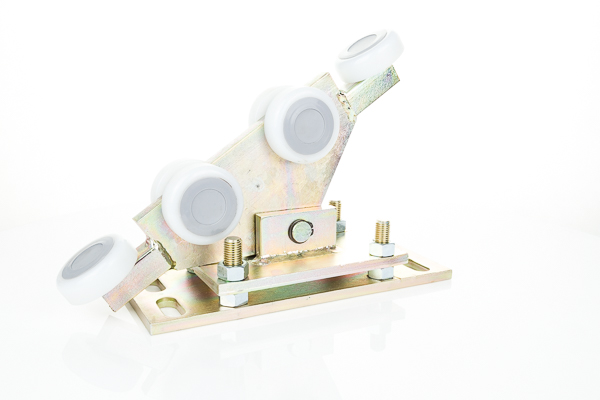

Swinging load-bearing carriages for self-supporting sliding gates. Custom manufacturing of trolleys for various gate profiles available upon request.
Advantages of the additional adjustment plate
The first lower mounting plate is bolted directly to the foundation base. The second base allows adjustment to the correct height for the closed gate. This solution guarantees stable and solid attachment of the trolley to the foundation base.
Carriage with reinforced construction
Thicker steel sheet has been used. The trolley base has been extended, making installation more comfortable.
Sliding trolleys are equipped with polyamide or metal rollers.
Advantages of the polyamide bearing roller:
- Manufactured using injection molding, which guarantees high resistance to abrasion and cracking.
- They reduce noise levels during gate movement.
- Abrasion is lower compared to steel rollers.
- The metal gate profile does not wear out.
- High resistance to changing weather conditions.
Horizontally mounted guide rollers at the front and rear of the trolley allow perfect adjustment to the gate guide rail. Additionally, horizontal rollers protect the vertical rollers from wear. A carriage with four horizontal rollers is recommended for gates with a clear opening length of 4–6 m.
Carriage installation
Trolleys are installed at the end of the gate in the so-called counterweight section. It is assumed that the counterweight length is 1/3 of the gate opening width, or for gates longer than 8 m, approximately 1/2 of the gate opening width. The trolley mounting base has four elongated holes (slots), allowing it to be fixed to the ground using anchors or threaded rods. The maximum diameter of the rods is M16, with M14 recommended.
Gate load capacity: 400 kg.
Clear gate opening length: 4–6 m.
Mounting plate: TYPE “B” – standard.
